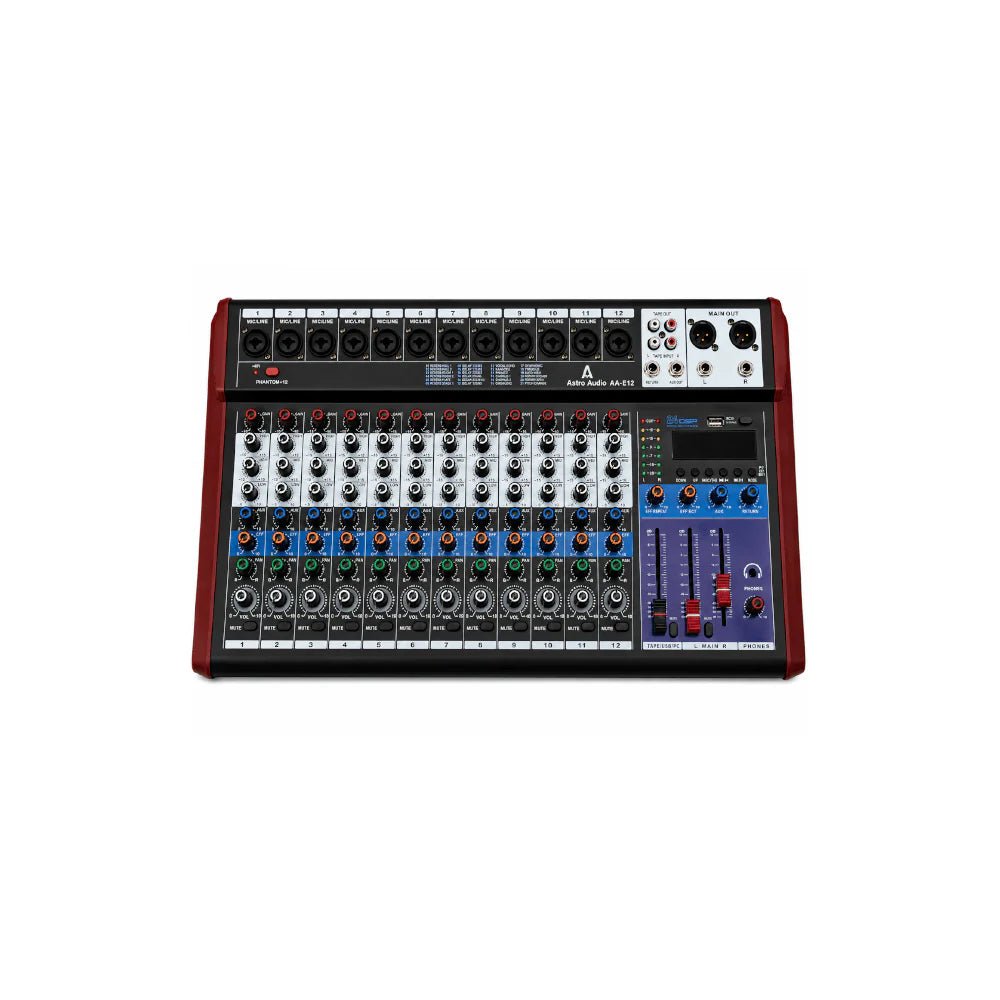

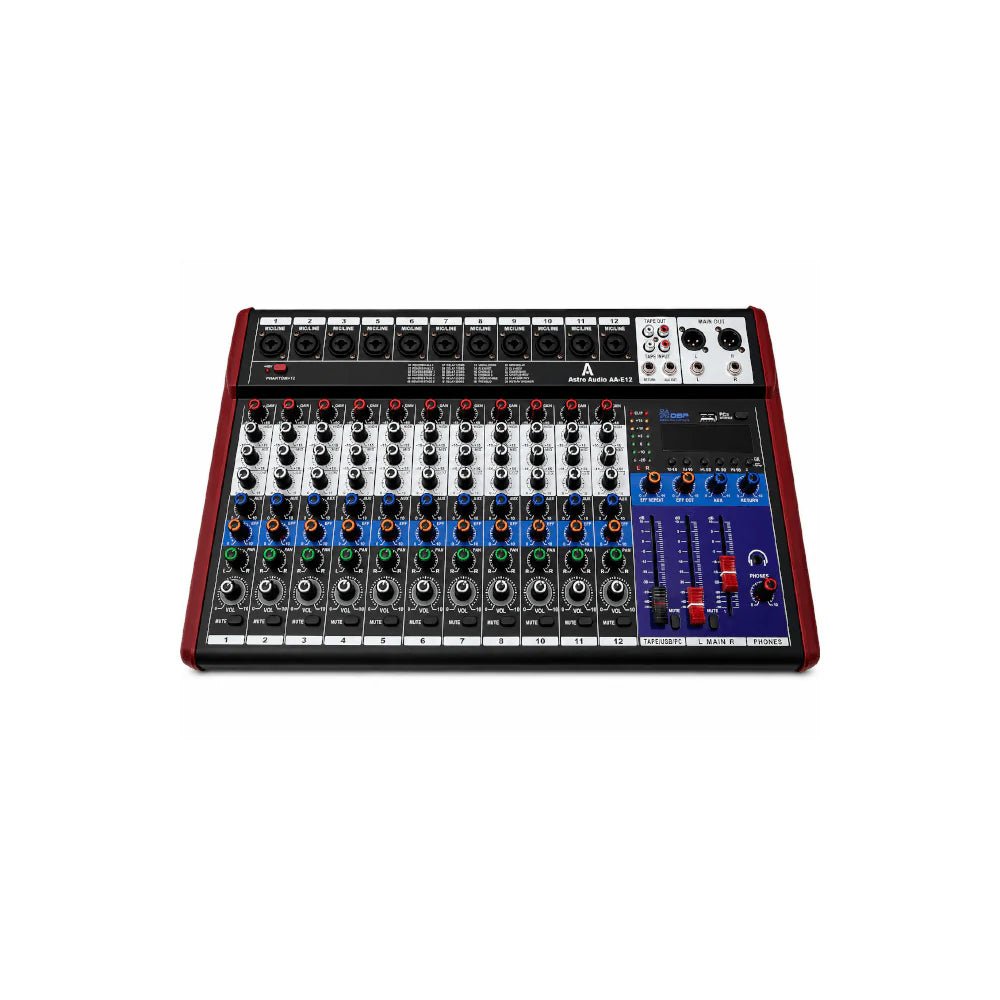

Astro Audio Professional Desktop Mixer with USB

The Astro Audio AA-E12 Professional Desktop Mixer is a versatile audio mixing console designed for live performances, podcasting, content creation, studio recording, churches, schools, and public address systems. Featuring 8 microphone/line input channels, Bluetooth connectivity, USB audio playback, phantom power, and 24 built-in DSP effects, this mixer delivers professional sound control in a compact desktop format.

Advanced 3-band EQ controls, AUX routing, monitoring outputs, and low-noise circuitry provide exceptional flexibility for both beginners and experienced audio engineers. Designed to deliver clean, high-quality sound, the AA-E12 is ideal for anyone looking to elevate their audio production and live sound performance.

Features

• Professional desktop audio mixer
• USB audio playback and recording support
• Bluetooth wireless audio streaming
• 24 built-in DSP digital effects
• +48V Phantom Power for condenser microphones
• 8 Mono microphone/line input channels
• 3-Band EQ controls (High, Mid, Low)
• AUX send and return functionality
• Headphone monitoring output
• Main output and record output connections
• High-pass filter on input channels
• Low-noise audio circuitry
• Suitable for live sound, recording, streaming, and broadcasting

Specifications

• Model: AA-E12
• Input Channels: 8 Mono Channels
• Frequency Response: +0.5dB / -2.0dB (20Hz – 20kHz)
• Distortion: 0.05% @ +10dBu
• Residual Noise: -82dBu
• Channel Crosstalk (1kHz): -80dBu
• Main Outputs: 2
• Record Outputs: 2
• Headphone Output: 3.5mm
• AUX Output: 1
• PC Interface: 1
• USB Audio Sample Rate: Up to 48kHz
• USB Audio Bit Depth: 16-bit / 24-bit
• Internal DSP Effects: 24 Presets
• Phantom Power: +48V
• Power Supply: DC 5V / 2A
